LineChart

Draws a line chart.

Example:

fch.LineChart(
    min_y=0,
    max_y=3,
    min_x=0,
    max_x=5,
    data_series=[
        fch.LineChartData(
            color=ft.Colors.BLUE_GREY_500,
            curved=True,
            points=[
                fch.LineChartDataPoint(1, 0.5),
                fch.LineChartDataPoint(2, 1.5),
                fch.LineChartDataPoint(3, 1),
            ],
        ),
        ...,
    ],
)
LineChart
Basic line chart

Inherits: LayoutControl

Properties

  • animation - Controls chart implicit animation.
  • baseline_x - Baseline value for X axis.
  • baseline_y - Baseline value for Y axis.
  • bgcolor - Background color of the chart.
  • border - The border around the chart.
  • bottom_axis - Defines the appearance of the bottom axis, its title and labels.
  • data_series - A list of LineChartData controls drawn as separate lines on a chart.
  • horizontal_grid_lines - Controls drawing of chart's horizontal lines.
  • interactive - Enables automatic tooltips and points highlighting when hovering over the chart.
  • left_axis - Defines the appearance of the left axis, its title and labels.
  • max_x - Defines the maximum displayed value for X axis.
  • max_y - Defines the maximum displayed value for Y axis.
  • min_x - Defines the minimum displayed value for X axis.
  • min_y - Defines the minimum displayed value for Y axis.
  • point_line_end - The end of the vertical line drawn at selected point position.
  • point_line_start - The start of the vertical line drawn under the selected point.
  • right_axis - Defines the appearance of the right axis, its title and labels.
  • tooltip - The tooltip configuration for this chart.
  • top_axis - Defines the appearance of the top axis, its title and labels.
  • vertical_grid_lines - Controls drawing of chart's vertical lines.

Events

  • on_event - Fires when a chart line is hovered or clicked.

Examples​

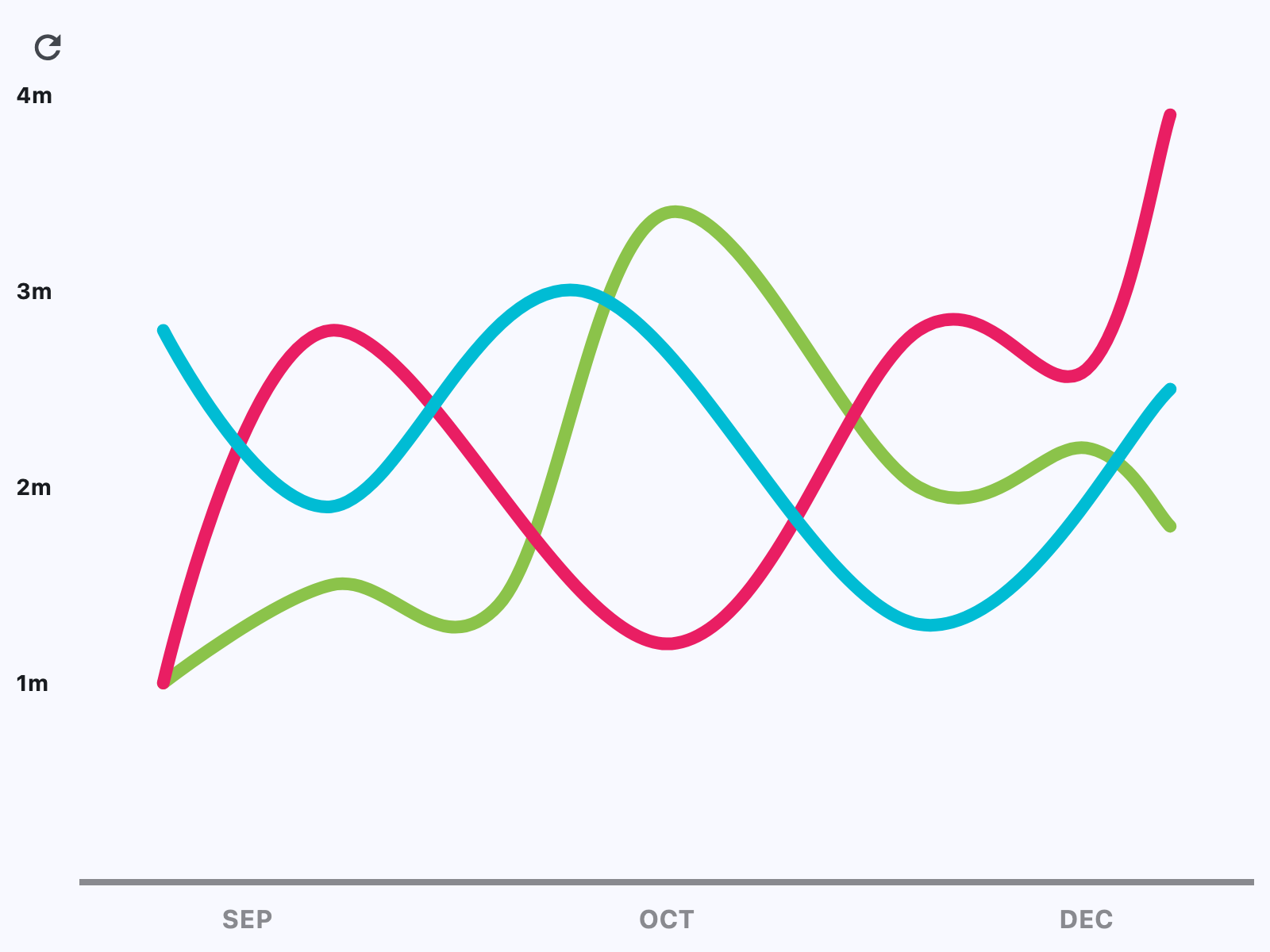

Example 1​

import flet as ft
import flet_charts as fch


class State:
    toggled = True


state = State()


def main(page: ft.Page):
    data_1 = [
        fch.LineChartData(
            stroke_width=8,
            color=ft.Colors.LIGHT_GREEN,
            curved=True,
            rounded_stroke_cap=True,
            points=[
                fch.LineChartDataPoint(1, 1),
                fch.LineChartDataPoint(3, 1.5),
                fch.LineChartDataPoint(5, 1.4),
                fch.LineChartDataPoint(7, 3.4),
                fch.LineChartDataPoint(10, 2),
                fch.LineChartDataPoint(12, 2.2),
                fch.LineChartDataPoint(13, 1.8),
            ],
        ),
        fch.LineChartData(
            color=ft.Colors.PINK,
            below_line_bgcolor=ft.Colors.with_opacity(0, ft.Colors.PINK),
            stroke_width=8,
            curved=True,
            rounded_stroke_cap=True,
            points=[
                fch.LineChartDataPoint(1, 1),
                fch.LineChartDataPoint(3, 2.8),
                fch.LineChartDataPoint(7, 1.2),
                fch.LineChartDataPoint(10, 2.8),
                fch.LineChartDataPoint(12, 2.6),
                fch.LineChartDataPoint(13, 3.9),
            ],
        ),
        fch.LineChartData(
            color=ft.Colors.CYAN,
            stroke_width=8,
            curved=True,
            rounded_stroke_cap=True,
            points=[
                fch.LineChartDataPoint(1, 2.8),
                fch.LineChartDataPoint(3, 1.9),
                fch.LineChartDataPoint(6, 3),
                fch.LineChartDataPoint(10, 1.3),
                fch.LineChartDataPoint(13, 2.5),
            ],
        ),
    ]

    data_2 = [
        fch.LineChartData(
            stroke_width=4,
            color=ft.Colors.with_opacity(0.5, ft.Colors.LIGHT_GREEN),
            rounded_stroke_cap=True,
            points=[
                fch.LineChartDataPoint(1, 1),
                fch.LineChartDataPoint(3, 4),
                fch.LineChartDataPoint(5, 1.8),
                fch.LineChartDataPoint(7, 5),
                fch.LineChartDataPoint(10, 2),
                fch.LineChartDataPoint(12, 2.2),
                fch.LineChartDataPoint(13, 1.8),
            ],
        ),
        fch.LineChartData(
            color=ft.Colors.with_opacity(0.5, ft.Colors.PINK),
            below_line_bgcolor=ft.Colors.with_opacity(0.2, ft.Colors.PINK),
            stroke_width=4,
            curved=True,
            rounded_stroke_cap=True,
            points=[
                fch.LineChartDataPoint(1, 1),
                fch.LineChartDataPoint(3, 2.8),
                fch.LineChartDataPoint(7, 1.2),
                fch.LineChartDataPoint(10, 2.8),
                fch.LineChartDataPoint(12, 2.6),
                fch.LineChartDataPoint(13, 3.9),
            ],
        ),
        fch.LineChartData(
            color=ft.Colors.with_opacity(0.5, ft.Colors.CYAN),
            stroke_width=4,
            rounded_stroke_cap=True,
            points=[
                fch.LineChartDataPoint(1, 3.8),
                fch.LineChartDataPoint(3, 1.9),
                fch.LineChartDataPoint(6, 5),
                fch.LineChartDataPoint(10, 3.3),
                fch.LineChartDataPoint(13, 4.5),
            ],
        ),
    ]

    chart = fch.LineChart(
        data_series=data_1,
        border=ft.Border(
            bottom=ft.BorderSide(4, ft.Colors.with_opacity(0.5, ft.Colors.ON_SURFACE))
        ),
        tooltip=fch.LineChartTooltip(
            bgcolor=ft.Colors.with_opacity(0.8, ft.Colors.BLUE_GREY)
        ),
        min_y=0,
        max_y=4,
        min_x=0,
        max_x=14,
        expand=True,
        right_axis=fch.ChartAxis(show_labels=False),
        left_axis=fch.ChartAxis(
            label_size=40,
            labels=[
                fch.ChartAxisLabel(
                    value=1,
                    label=ft.Text("1m", size=14, weight=ft.FontWeight.BOLD),
                ),
                fch.ChartAxisLabel(
                    value=2,
                    label=ft.Text("2m", size=14, weight=ft.FontWeight.BOLD),
                ),
                fch.ChartAxisLabel(
                    value=3,
                    label=ft.Text("3m", size=14, weight=ft.FontWeight.BOLD),
                ),
                fch.ChartAxisLabel(
                    value=4,
                    label=ft.Text("4m", size=14, weight=ft.FontWeight.BOLD),
                ),
                fch.ChartAxisLabel(
                    value=5,
                    label=ft.Text("5m", size=14, weight=ft.FontWeight.BOLD),
                ),
                fch.ChartAxisLabel(
                    value=6,
                    label=ft.Text("6m", size=14, weight=ft.FontWeight.BOLD),
                ),
            ],
        ),
        bottom_axis=fch.ChartAxis(
            label_size=32,
            labels=[
                fch.ChartAxisLabel(
                    value=2,
                    label=ft.Container(
                        margin=ft.Margin(top=10),
                        content=ft.Text(
                            value="SEP",
                            size=16,
                            weight=ft.FontWeight.BOLD,
                            color=ft.Colors.with_opacity(0.5, ft.Colors.ON_SURFACE),
                        ),
                    ),
                ),
                fch.ChartAxisLabel(
                    value=7,
                    label=ft.Container(
                        margin=ft.Margin(top=10),
                        content=ft.Text(
                            value="OCT",
                            size=16,
                            weight=ft.FontWeight.BOLD,
                            color=ft.Colors.with_opacity(0.5, ft.Colors.ON_SURFACE),
                        ),
                    ),
                ),
                fch.ChartAxisLabel(
                    value=12,
                    label=ft.Container(
                        margin=ft.Margin(top=10),
                        content=ft.Text(
                            value="DEC",
                            size=16,
                            weight=ft.FontWeight.BOLD,
                            color=ft.Colors.with_opacity(0.5, ft.Colors.ON_SURFACE),
                        ),
                    ),
                ),
            ],
        ),
    )

    def toggle_data(e: ft.Event[ft.IconButton]):
        if state.toggled:
            chart.data_series = data_2
            chart.data_series[2].point = True
            chart.max_y = 6
            chart.interactive = False
        else:
            chart.data_series = data_1
            chart.max_y = 4
            chart.interactive = True
        state.toggled = not state.toggled
        chart.update()

    page.add(
        ft.SafeArea(
            content=ft.Column(
                controls=[
                    ft.IconButton(ft.Icons.REFRESH, on_click=toggle_data),
                    chart,
                ]
            ),
        )
    )


if __name__ == "__main__":
    ft.run(main)

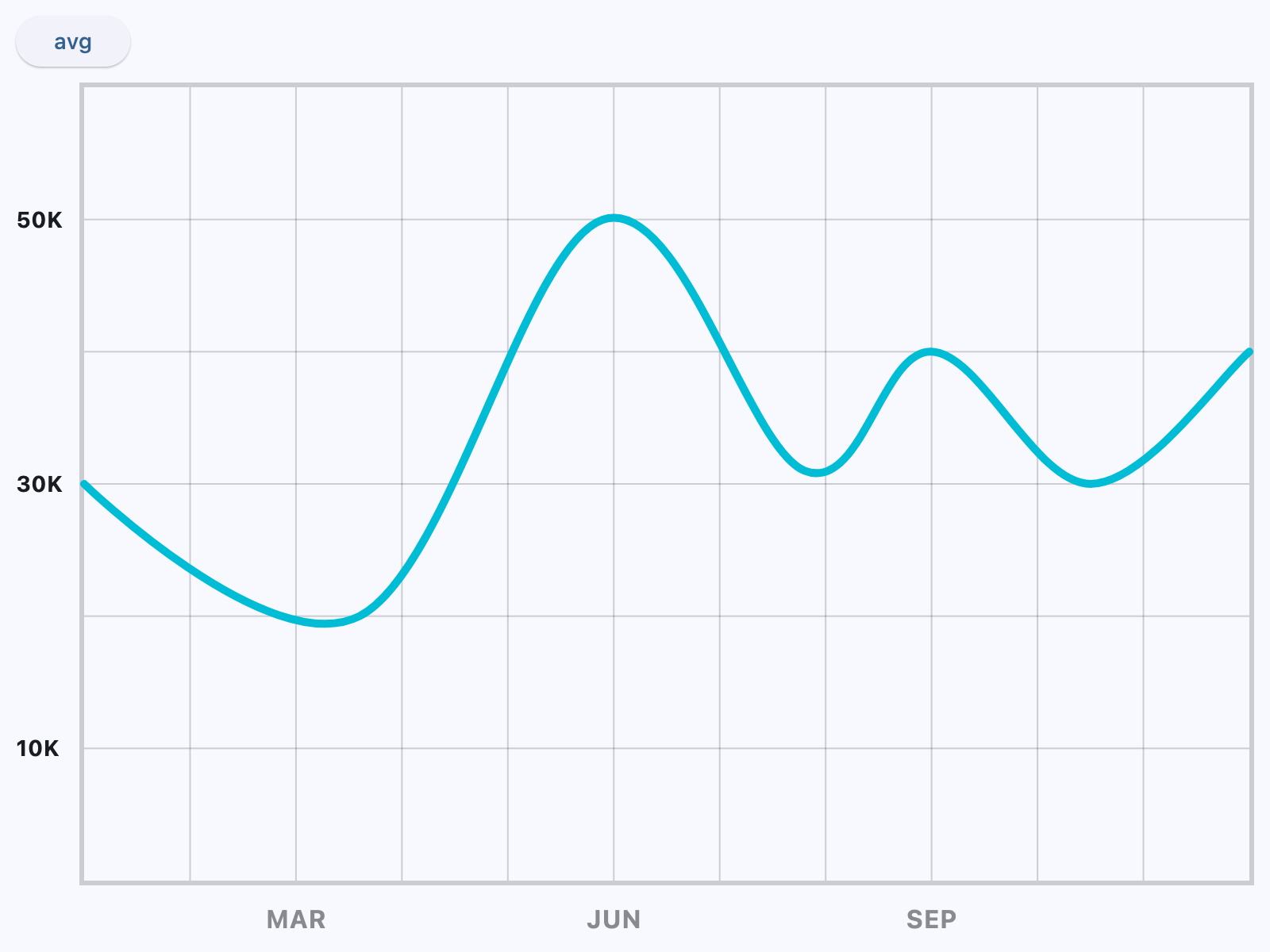

Example 2​

import flet as ft
import flet_charts as fch


class State:
    toggled = True


state = State()


def main(page: ft.Page):
    data_1 = [
        fch.LineChartData(
            stroke_width=5,
            color=ft.Colors.CYAN,
            curved=True,
            rounded_stroke_cap=True,
            points=[
                fch.LineChartDataPoint(0, 3),
                fch.LineChartDataPoint(2.6, 2),
                fch.LineChartDataPoint(4.9, 5),
                fch.LineChartDataPoint(6.8, 3.1),
                fch.LineChartDataPoint(8, 4),
                fch.LineChartDataPoint(9.5, 3),
                fch.LineChartDataPoint(11, 4),
            ],
        )
    ]

    data_2 = [
        fch.LineChartData(
            stroke_width=5,
            color=ft.Colors.CYAN,
            curved=True,
            rounded_stroke_cap=True,
            points=[
                fch.LineChartDataPoint(0, 3.44),
                fch.LineChartDataPoint(2.6, 3.44),
                fch.LineChartDataPoint(4.9, 3.44),
                fch.LineChartDataPoint(6.8, 3.44),
                fch.LineChartDataPoint(8, 3.44),
                fch.LineChartDataPoint(9.5, 3.44),
                fch.LineChartDataPoint(11, 3.44),
            ],
        )
    ]

    chart = fch.LineChart(
        expand=True,
        data_series=data_1,
        min_y=0,
        max_y=6,
        min_x=0,
        max_x=11,
        border=ft.Border.all(3, ft.Colors.with_opacity(0.2, ft.Colors.ON_SURFACE)),
        horizontal_grid_lines=fch.ChartGridLines(
            interval=1, color=ft.Colors.with_opacity(0.2, ft.Colors.ON_SURFACE), width=1
        ),
        vertical_grid_lines=fch.ChartGridLines(
            interval=1, color=ft.Colors.with_opacity(0.2, ft.Colors.ON_SURFACE), width=1
        ),
        tooltip=fch.LineChartTooltip(
            bgcolor=ft.Colors.with_opacity(0.8, ft.Colors.BLUE_GREY)
        ),
        left_axis=fch.ChartAxis(
            label_size=40,
            labels=[
                fch.ChartAxisLabel(
                    value=1,
                    label=ft.Text("10K", size=14, weight=ft.FontWeight.BOLD),
                ),
                fch.ChartAxisLabel(
                    value=3,
                    label=ft.Text("30K", size=14, weight=ft.FontWeight.BOLD),
                ),
                fch.ChartAxisLabel(
                    value=5,
                    label=ft.Text("50K", size=14, weight=ft.FontWeight.BOLD),
                ),
            ],
        ),
        bottom_axis=fch.ChartAxis(
            label_size=32,
            labels=[
                fch.ChartAxisLabel(
                    value=2,
                    label=ft.Container(
                        margin=ft.Margin(top=10),
                        content=ft.Text(
                            value="MAR",
                            size=16,
                            weight=ft.FontWeight.BOLD,
                            color=ft.Colors.with_opacity(0.5, ft.Colors.ON_SURFACE),
                        ),
                    ),
                ),
                fch.ChartAxisLabel(
                    value=5,
                    label=ft.Container(
                        margin=ft.Margin(top=10),
                        content=ft.Text(
                            value="JUN",
                            size=16,
                            weight=ft.FontWeight.BOLD,
                            color=ft.Colors.with_opacity(0.5, ft.Colors.ON_SURFACE),
                        ),
                    ),
                ),
                fch.ChartAxisLabel(
                    value=8,
                    label=ft.Container(
                        margin=ft.Margin(top=10),
                        content=ft.Text(
                            value="SEP",
                            size=16,
                            weight=ft.FontWeight.BOLD,
                            color=ft.Colors.with_opacity(0.5, ft.Colors.ON_SURFACE),
                        ),
                    ),
                ),
            ],
        ),
    )

    def toggle_data(e: ft.Event[ft.ElevatedButton]):
        if state.toggled:
            chart.data_series = data_2
            chart.interactive = False
        else:
            chart.data_series = data_1
            chart.interactive = True
        state.toggled = not state.toggled
        chart.update()

    page.add(
        ft.SafeArea(
            content=ft.Column(
                controls=[
                    ft.Button("avg", on_click=toggle_data),
                    chart,
                ]
            ),
        )
    )


if __name__ == "__main__":
    ft.run(main)

Properties​

animationclass-attributeinstance-attribute​

animation: AnimationValue = field(default_factory=(lambda: Animation(duration=(Duration(milliseconds=150)), curve=(AnimationCurve.LINEAR))))

Controls chart implicit animation.

baseline_xclass-attributeinstance-attribute​

baseline_x: Optional[Number] = None

Baseline value for X axis.

baseline_yclass-attributeinstance-attribute​

baseline_y: Optional[Number] = None

Baseline value for Y axis.

bgcolorclass-attributeinstance-attribute​

bgcolor: Optional[ColorValue] = None

Background color of the chart.

borderclass-attributeinstance-attribute​

border: Optional[Border] = None

The border around the chart.

bottom_axisclass-attributeinstance-attribute​

bottom_axis: Optional[ChartAxis] = None

Defines the appearance of the bottom axis, its title and labels.

data_seriesclass-attributeinstance-attribute​

data_series: list[LineChartData] = field(default_factory=list)

A list of LineChartData controls drawn as separate lines on a chart.

horizontal_grid_linesclass-attributeinstance-attribute​

horizontal_grid_lines: Optional[ChartGridLines] = None

Controls drawing of chart's horizontal lines.

interactiveclass-attributeinstance-attribute​

interactive: bool = True

Enables automatic tooltips and points highlighting when hovering over the chart.

left_axisclass-attributeinstance-attribute​

left_axis: Optional[ChartAxis] = None

Defines the appearance of the left axis, its title and labels.

max_xclass-attributeinstance-attribute​

max_x: Optional[Number] = None

Defines the maximum displayed value for X axis.

max_yclass-attributeinstance-attribute​

max_y: Optional[Number] = None

Defines the maximum displayed value for Y axis.

min_xclass-attributeinstance-attribute​

min_x: Optional[Number] = None

Defines the minimum displayed value for X axis.

min_yclass-attributeinstance-attribute​

min_y: Optional[Number] = None

Defines the minimum displayed value for Y axis.

point_line_endclass-attributeinstance-attribute​

point_line_end: Optional[Number] = None

The end of the vertical line drawn at selected point position.

Defaults to data point's y value.

point_line_startclass-attributeinstance-attribute​

point_line_start: Optional[Number] = None

The start of the vertical line drawn under the selected point.

Defaults to chart's bottom edge.

right_axisclass-attributeinstance-attribute​

right_axis: Optional[ChartAxis] = None

Defines the appearance of the right axis, its title and labels.

tooltipclass-attributeinstance-attribute​

tooltip: Optional[LineChartTooltip] = field(default_factory=(lambda: LineChartTooltip()))

The tooltip configuration for this chart.

If set to None, no tooltips will be shown throughout this chart.

top_axisclass-attributeinstance-attribute​

top_axis: Optional[ChartAxis] = None

Defines the appearance of the top axis, its title and labels.

vertical_grid_linesclass-attributeinstance-attribute​

vertical_grid_lines: Optional[ChartGridLines] = None

Controls drawing of chart's vertical lines.

Events​

on_eventclass-attributeinstance-attribute​

on_event: Optional[EventHandler[LineChartEvent]] = None

Fires when a chart line is hovered or clicked.
