Pagelet

Pagelet implements the basic Material Design visual layout structure.

Use it for projects that require "page within a page" layouts with its own AppBar, BottomBar, Drawer, such as demos and galleries.

Examples​

Live example

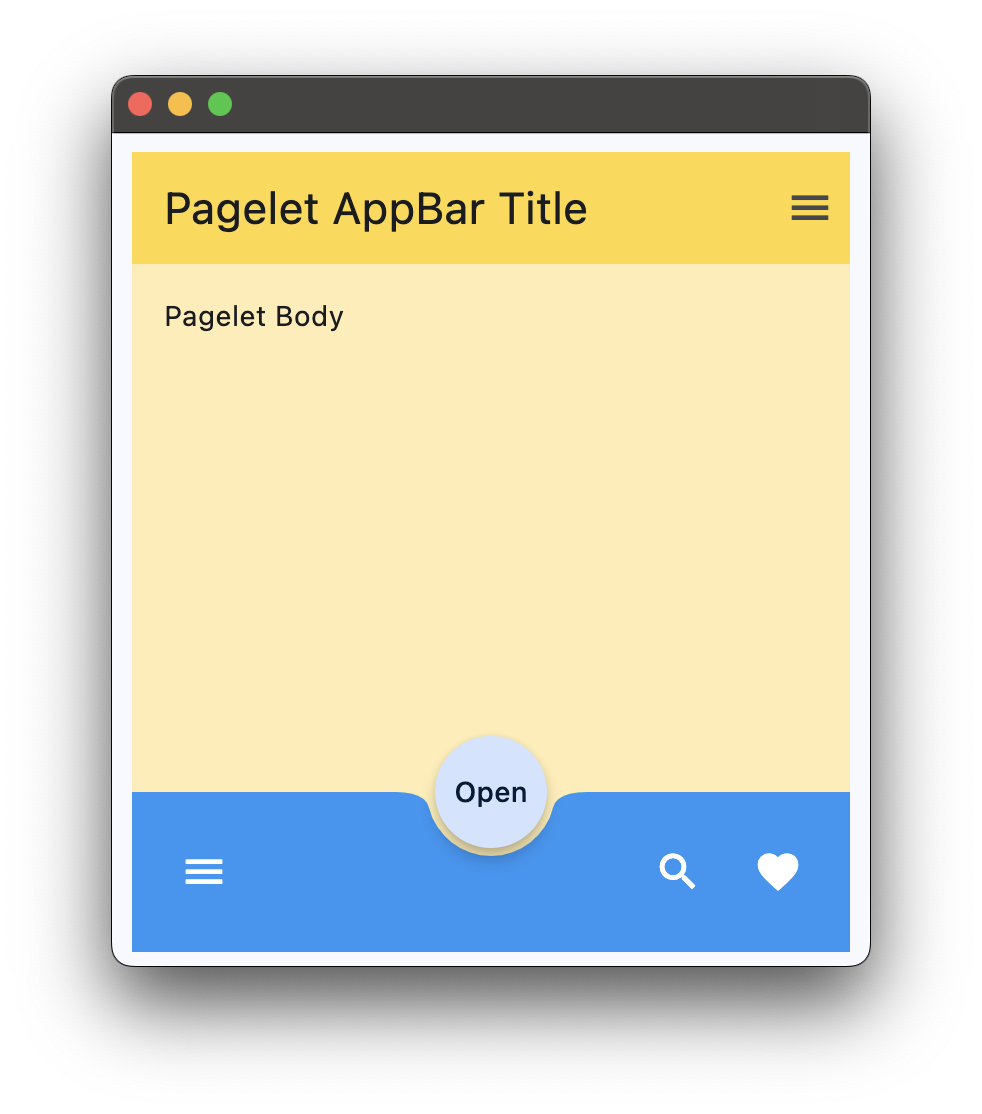

Pagelet example​

import flet as ft

def main(page: ft.Page):
    def open_pagelet_end_drawer(e):
        pagelet.end_drawer.open = True
        pagelet.end_drawer.update()

    pagelet = ft.Pagelet(
        appbar=ft.AppBar(
            title=ft.Text("Pagelet AppBar title"), bgcolor=ft.Colors.AMBER_ACCENT
        ),
        content=ft.Text("Pagelet body"),
        bgcolor=ft.Colors.AMBER_100,
        bottom_app_bar=ft.BottomAppBar(
            bgcolor=ft.Colors.BLUE,
            shape=ft.NotchShape.CIRCULAR,
            content=ft.Row(
                controls=[
                    ft.IconButton(icon=ft.Icons.MENU, icon_color=ft.Colors.WHITE),
                    ft.Container(expand=True),
                    ft.IconButton(icon=ft.Icons.SEARCH, icon_color=ft.Colors.WHITE),
                    ft.IconButton(icon=ft.Icons.FAVORITE, icon_color=ft.Colors.WHITE),
                ]
            ),
        ),
        end_drawer=ft.NavigationDrawer(
            controls=[
                ft.NavigationDrawerDestination(
                    icon=ft.Icons.ADD_TO_HOME_SCREEN_SHARP, label="Item 1"
                ),
                ft.NavigationDrawerDestination(
                    icon=ft.Icons.ADD_COMMENT, label="Item 2"
                ),
            ],
        ),
        floating_action_button=ft.FloatingActionButton(
            "Open", on_click=open_pagelet_end_drawer
        ),
        floating_action_button_location=ft.FloatingActionButtonLocation.CENTER_DOCKED,
        width=400,
        height=400,
    )

    page.add(pagelet)


ft.app(main)

Properties​

appbar​

An AppBar control to display at the top of the Pagelet.

bgcolor​

Background color of the Pagelet.

bottom_appbar​

BottomAppBar control to display at the bottom of the Pagelet. If both bottom_appbar and navigation_bar properties are provided, NavigationBar will be displayed.

bottom_sheet​

The persistent bottom sheet to show information that supplements the primary content of the Pagelet. Can be any control.

content​

A child Control contained by the Pagelet. The control in the content of the Pagelet is positioned at the top-left of the available space between the app bar and the bottom of the Pagelet.

drawer​

A NavigationDrawer control to display as a panel sliding from the start edge of the page.

end_drawer​

A NavigationDrawer control to display as a panel sliding from the end edge of the page.

floating_action_button​

A FloatingActionButton control to display on top of Pagelet content.

floating_action_button_location​

Defines a position for the FloatingActionButton.

Value can be of type OffsetValue or FloatingActionButtonLocation. Defaults to FloatingActionButtonLocation.END_FLOAT.

NavigationBar control to display at the bottom of the page. If both bottom_appbar and navigation_bar properties are provided, NavigationBar will be displayed.

Methods​

close_drawer()​

Closes active drawer.

close_end_drawer()​

Closes active end drawer.

show_drawer(drawer: NavigationDialog)​

Displays drawer.

show_end_drawer(drawer: NavigationDialog)​

Displays end_drawer.
