NavigationDrawer

Material Design Navigation Drawer component.

Navigation Drawer is a panel that slides in horizontally from the left or right edge of a page to show primary destinations in an app. To add NavigationDrawer to the page, use page.drawer and page.end_drawer properties. Similarly, the NavigationDrawer can be added to a View. To display the drawer, set its open property to True.

To open this control, simply call the page.open() helper-method.

Examples​

Live example

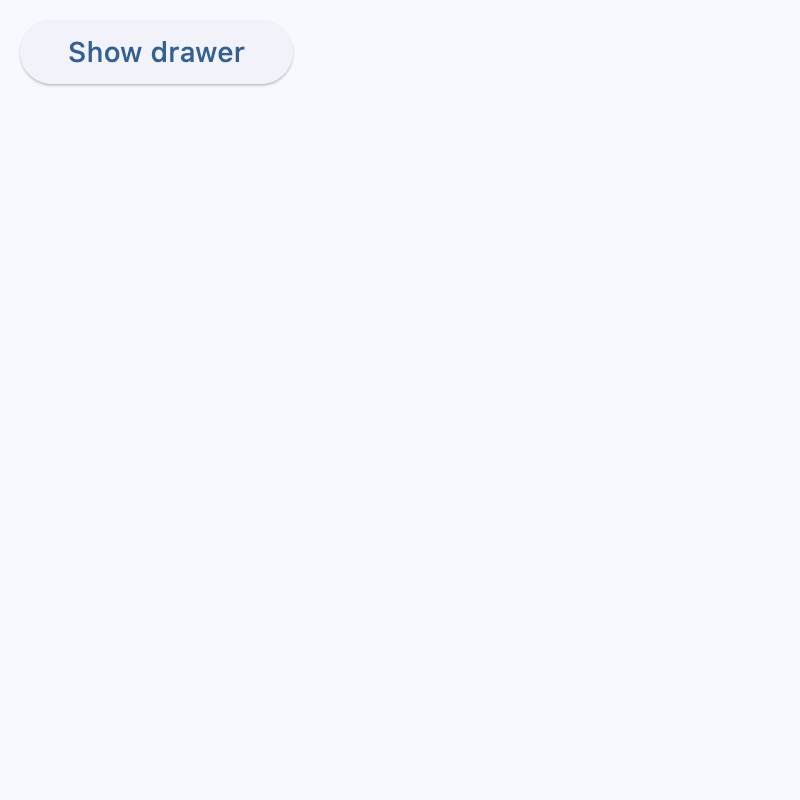

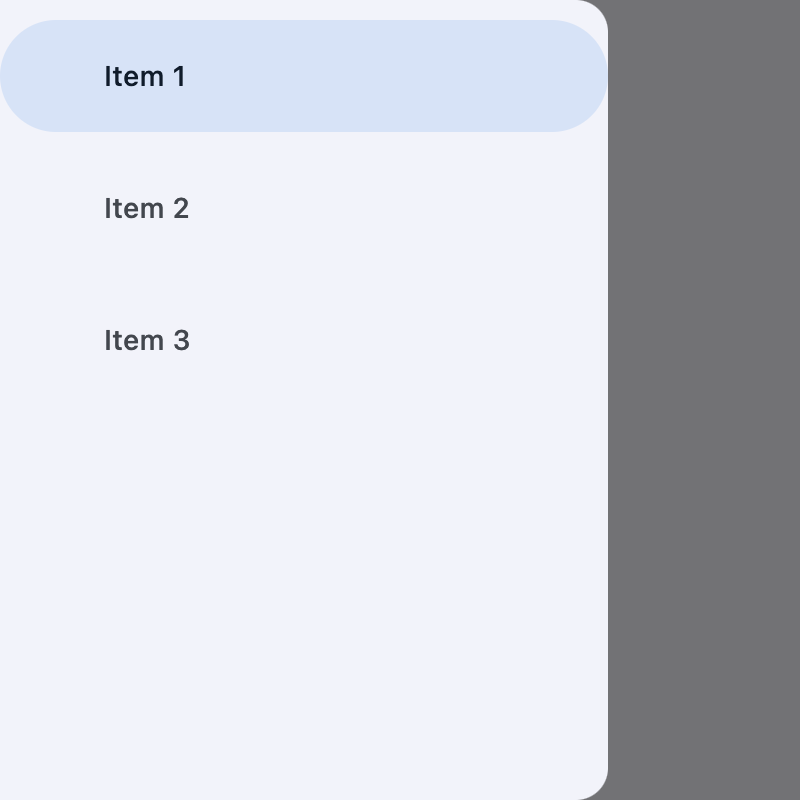

NavigationDrawer sliding from the left edge of a page​

import flet as ft


def main(page: ft.Page):
    page.horizontal_alignment = ft.CrossAxisAlignment.CENTER

    def handle_dismissal(e):
        page.add(ft.Text("Drawer dismissed"))

    def handle_change(e):
        page.add(ft.Text(f"Selected Index changed: {e.control.selected_index}"))
        # page.close(drawer)

    drawer = ft.NavigationDrawer(
        on_dismiss=handle_dismissal,
        on_change=handle_change,
        controls=[
            ft.Container(height=12),
            ft.NavigationDrawerDestination(
                label="Item 1",
                icon=ft.Icons.DOOR_BACK_DOOR_OUTLINED,
                selected_icon=ft.Icon(ft.Icons.DOOR_BACK_DOOR),
            ),
            ft.Divider(thickness=2),
            ft.NavigationDrawerDestination(
                icon=ft.Icon(ft.Icons.MAIL_OUTLINED),
                label="Item 2",
                selected_icon=ft.Icons.MAIL,
            ),
            ft.NavigationDrawerDestination(
                icon=ft.Icon(ft.Icons.PHONE_OUTLINED),
                label="Item 3",
                selected_icon=ft.Icons.PHONE,
            ),
        ],
    )

    page.add(ft.ElevatedButton("Show drawer", on_click=lambda e: page.open(drawer)))


ft.app(main)

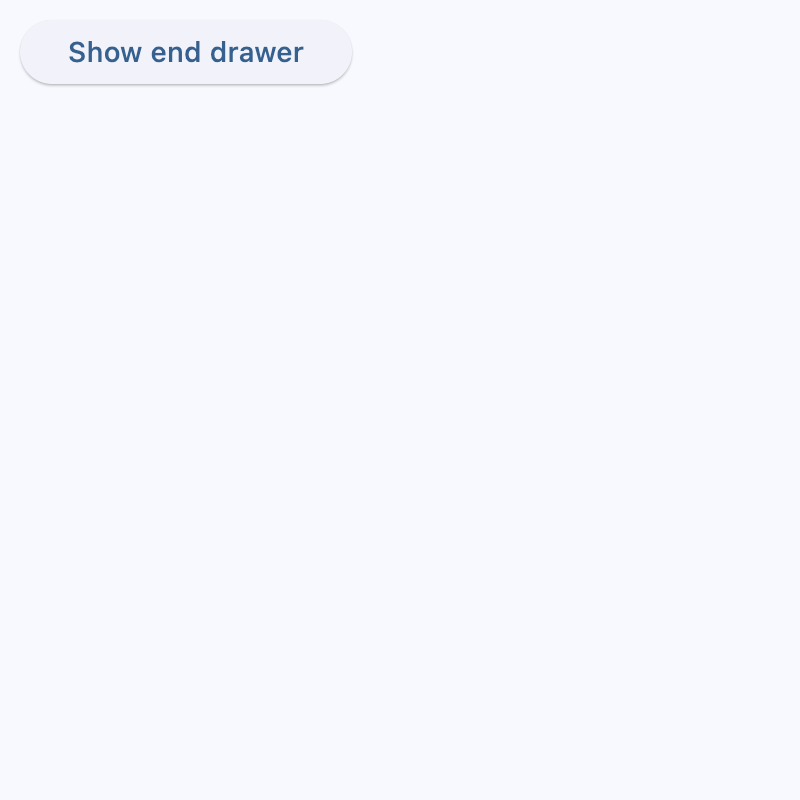

NavigationDrawer sliding from the right edge of a page​

import flet as ft


def main(page: ft.Page):
    page.horizontal_alignment = ft.CrossAxisAlignment.CENTER

    def handle_dismissal(e):
        page.add(ft.Text("End drawer dismissed"))

    def handle_change(e):
        page.add(ft.Text(f"Selected Index changed: {e.control.selected_index}"))
        # page.close(end_drawer)

    end_drawer = ft.NavigationDrawer(
        position=ft.NavigationDrawerPosition.END,
        on_dismiss=handle_dismissal,
        on_change=handle_change,
        controls=[
            ft.NavigationDrawerDestination(icon=ft.Icons.ADD_TO_HOME_SCREEN_SHARP, label="Item 1"),
            ft.NavigationDrawerDestination(icon=ft.Icon(ft.Icons.ADD_COMMENT), label="Item 2"),
        ],
    )

    page.add(ft.ElevatedButton("Show end drawer", on_click=lambda e: page.open(end_drawer)))


ft.app(main)

bgcolor​

The color of the navigation drawer itself.

controls​

Defines the appearance of the items within the navigation drawer.

The list contains NavigationDrawerDestination items and/or other controls such as headlines and dividers.

elevation​

The elevation of the navigation drawer itself.

indicator_color​

The color of the selected destination indicator.

indicator_shape​

The shape of the selected destination indicator.

Value is of type OutlinedBorder.

position​

The position of this drawer.

Value is of type NavigationDrawerPosition and defaults to NavigationDrawerPosition.START.

selected_index​

The index for the current selected NavigationDrawerDestination or null if no destination is selected.

A valid selected_index is an integer between 0 and number of destinations - 1. For an invalid selected_index, for example, -1, all destinations will appear unselected.

shadow_color​

The color used for the drop shadow to indicate elevation.

surface_tint_color​

The surface tint of the Material that holds the NavigationDrawer's contents.

tile_padding​

Defines the padding for NavigationDrawerDestination controls.

on_change​

Fires when selected destination changed.

on_dismiss​

Fires when drawer is dismissed by clicking outside of the panel or programmatically.

bgcolor​

The color of this destination.

icon​

The name of the icon or Control of the destination.

Example with icon name:

icon=ft.Icons.BOOKMARK

Example with Control:

icon=ft.Icon(ft.Icons.BOOKMARK)

If selected_icon is provided, this will only be displayed when the destination is not selected.

icon_content​

The icon Control of the destination. Typically the icon is an Icon control. Used instead of icon property.

Deprecated in v0.25.0 and will be removed in v0.28.0. Use icon instead.

label​

The text label that appears below the icon of this NavigationDrawerDestination.

selected_icon​

The name of alternative icon or Control displayed when this destination is selected.

Example with icon name:

selected_icon=ft.Icons.BOOKMARK

Example with Control:

selected_icon=ft.Icon(ft.Icons.BOOKMARK)

If this icon is not provided, the NavigationDrawer will display icon in either state.

selected_icon_content​

An alternative icon Control displayed when this destination is selected.

Deprecated in v0.25.0 and will be removed in v0.28.0. Use selected_icon instead.
