PlotlyChart

Displays a Plotly chart.

Warning

This control requires the plotly and kaleido Python packages to be installed.

See this installation guide for more information.

import plotly.express as px

data_canada = px.data.gapminder().query("country == 'Canada'")
fig = px.bar(data_canada, x="year", y="pop")
fch.PlotlyChart(figure=fig, expand=True)

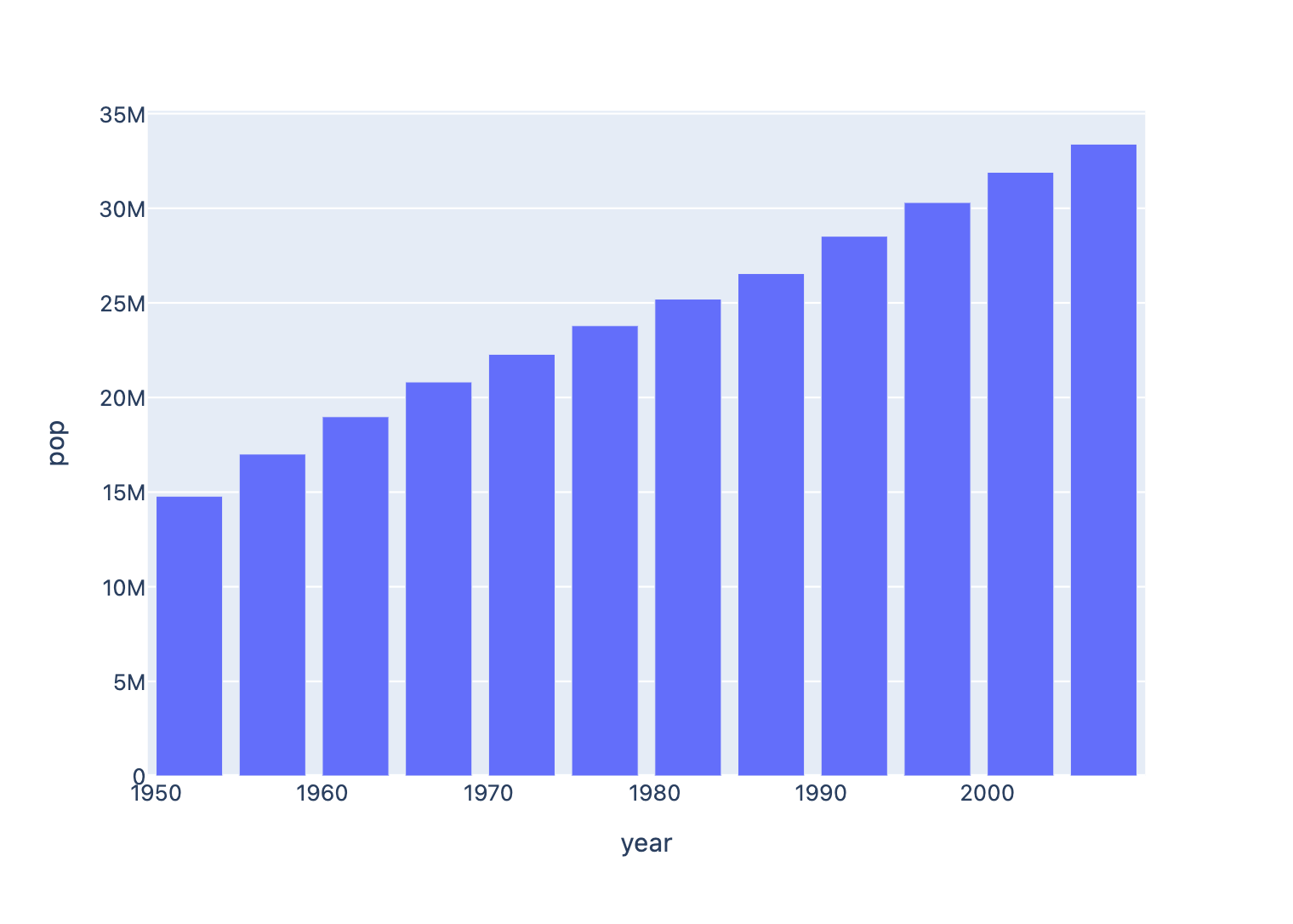

PlotlyChart
Bar chart based on official [Plotly example](https://plotly.com/python/bar-charts)

Inherits: Container

Properties

Examples​

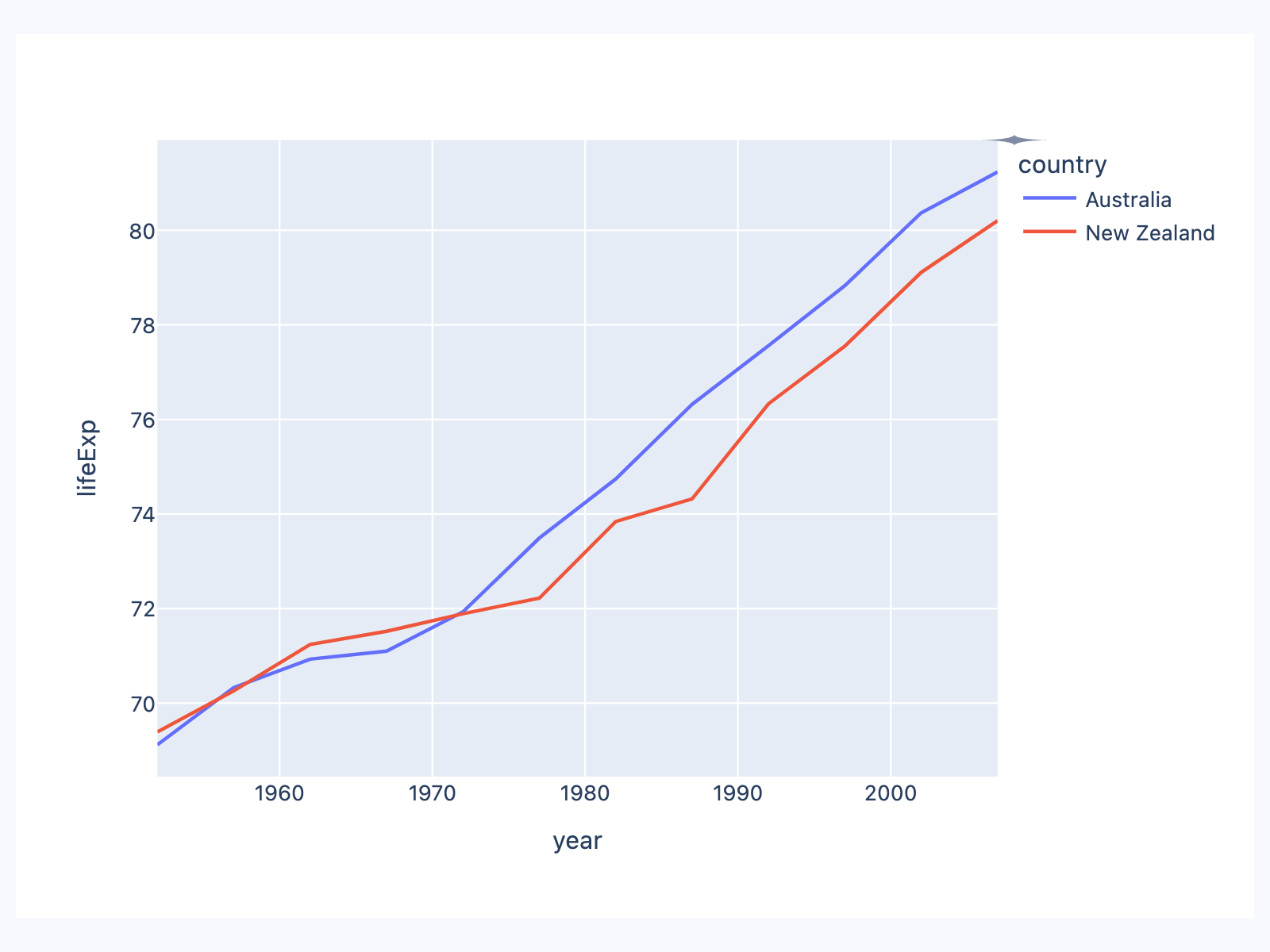

Example 1​

Based on an official Plotly example.

import plotly.express as px

import flet as ft
import flet_charts as fch


def main(page: ft.Page):
    df = px.data.gapminder().query("continent=='Oceania'")
    fig = px.line(df, x="year", y="lifeExp", color="country")

    page.add(ft.SafeArea(content=fch.PlotlyChart(figure=fig, expand=True)))


if __name__ == "__main__":
    ft.run(main)

Example 2​

Based on an official Plotly example.

import plotly.express as px

import flet as ft
import flet_charts as fch


def main(page: ft.Page):
    df = px.data.gapminder().query("continent == 'Oceania'")
    fig = px.bar(
        df,
        x="year",
        y="pop",
        hover_data=["lifeExp", "gdpPercap"],
        color="country",
        labels={"pop": "population of Canada"},
        height=400,
    )

    page.add(ft.SafeArea(content=fch.PlotlyChart(figure=fig, expand=True)))


if __name__ == "__main__":
    ft.run(main)

Example 3​

Based on an official Plotly example.

import plotly.graph_objects as go

import flet as ft
import flet_charts as fch


def main(page: ft.Page):
    labels = ["Oxygen", "Hydrogen", "Carbon_Dioxide", "Nitrogen"]
    values = [4500, 2500, 1053, 500]

    fig = go.Figure(data=[go.Pie(labels=labels, values=values)])

    page.add(ft.SafeArea(content=fch.PlotlyChart(figure=fig, expand=True)))


if __name__ == "__main__":
    ft.run(main)

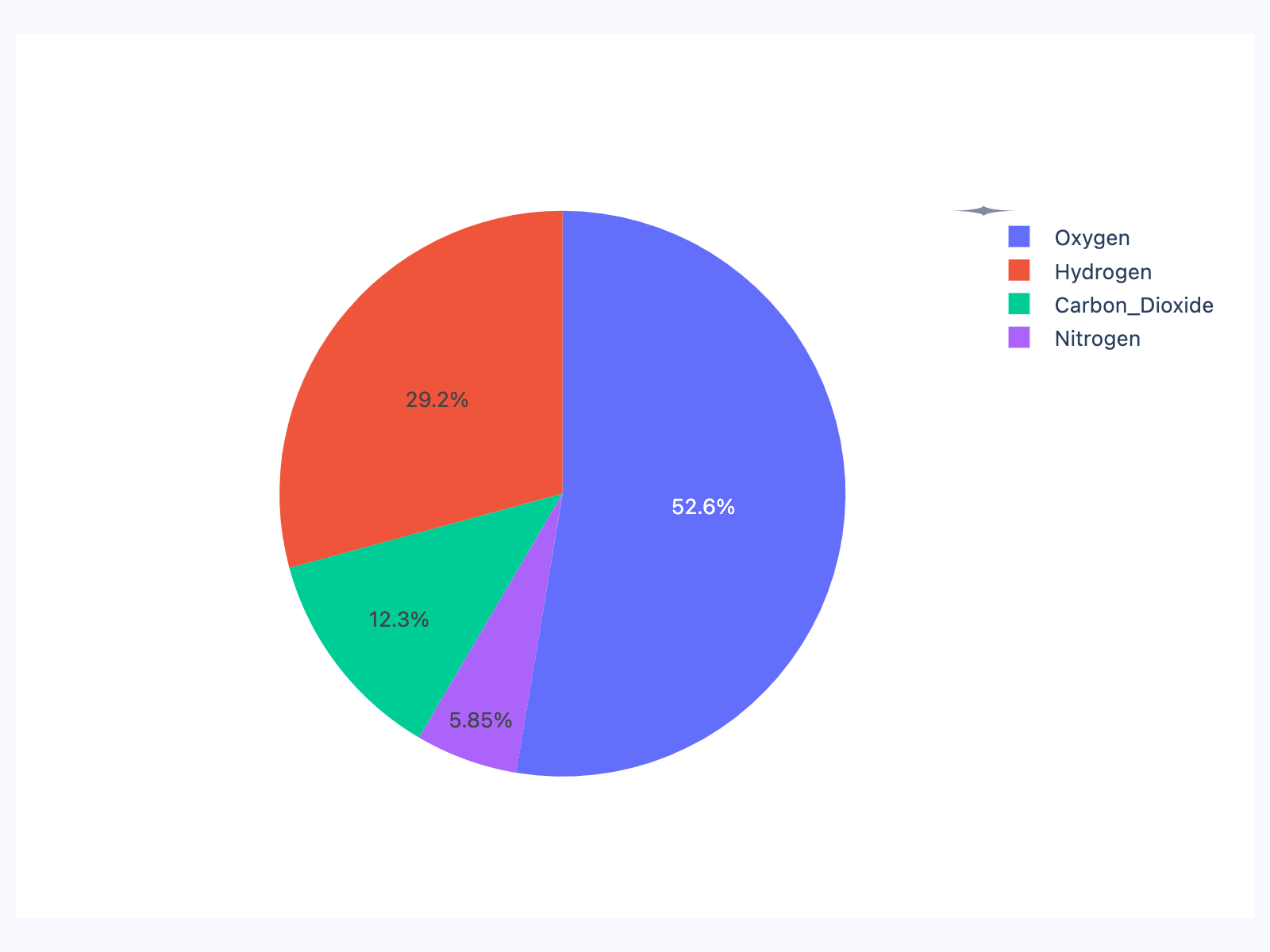

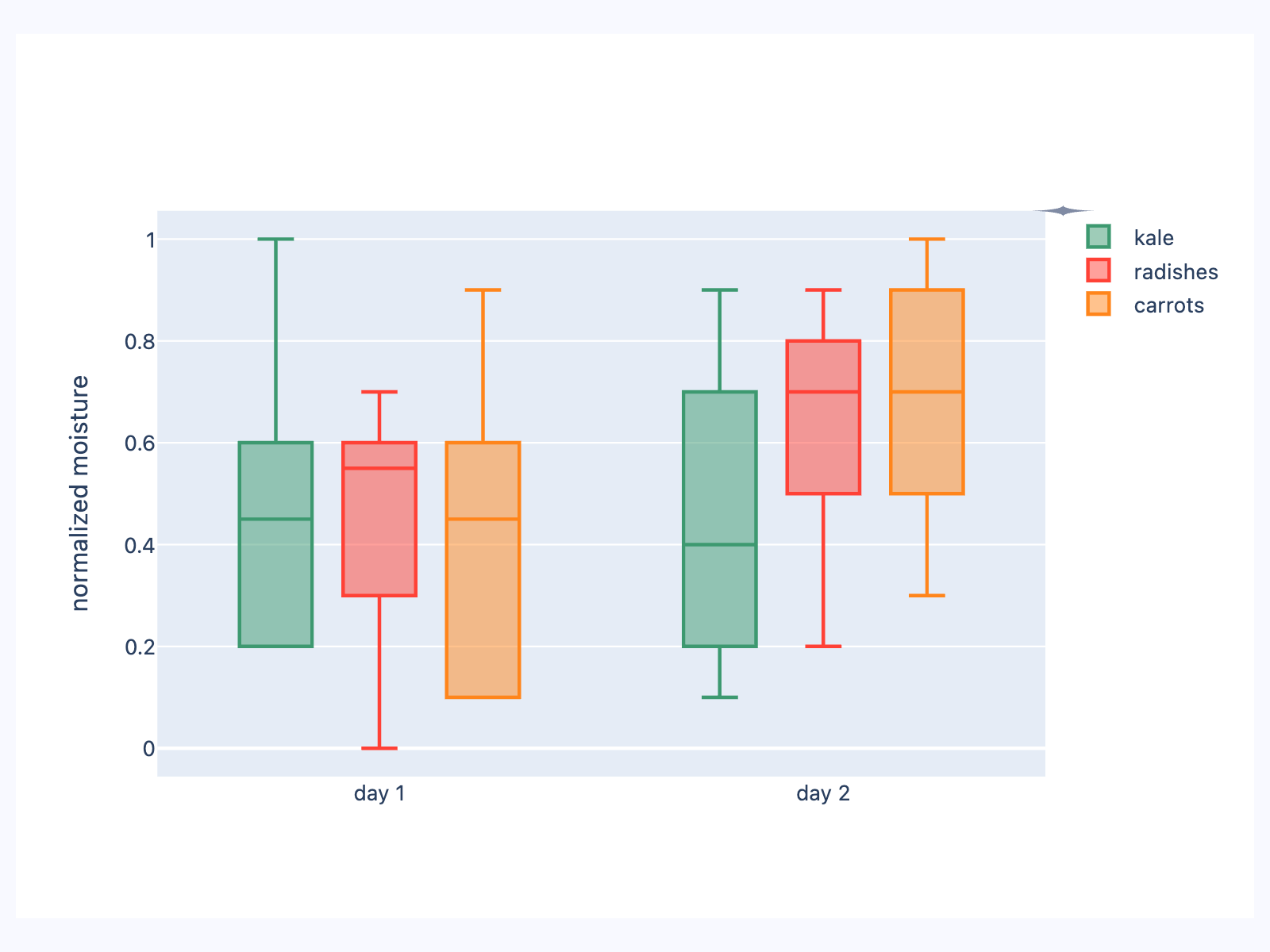

Example 4​

Based on an official Plotly example.

import plotly.graph_objects as go

import flet as ft
import flet_charts as fch


def main(page: ft.Page):
    x = [
        "day 1",
        "day 1",
        "day 1",
        "day 1",
        "day 1",
        "day 1",
        "day 2",
        "day 2",
        "day 2",
        "day 2",
        "day 2",
        "day 2",
    ]

    fig = go.Figure()

    fig.add_trace(
        go.Box(
            y=[0.2, 0.2, 0.6, 1.0, 0.5, 0.4, 0.2, 0.7, 0.9, 0.1, 0.5, 0.3],
            x=x,
            name="kale",
            marker_color="#3D9970",
        )
    )
    fig.add_trace(
        go.Box(
            y=[0.6, 0.7, 0.3, 0.6, 0.0, 0.5, 0.7, 0.9, 0.5, 0.8, 0.7, 0.2],
            x=x,
            name="radishes",
            marker_color="#FF4136",
        )
    )
    fig.add_trace(
        go.Box(
            y=[0.1, 0.3, 0.1, 0.9, 0.6, 0.6, 0.9, 1.0, 0.3, 0.6, 0.8, 0.5],
            x=x,
            name="carrots",
            marker_color="#FF851B",
        )
    )

    fig.update_layout(
        yaxis_title="normalized moisture",
        boxmode="group",  # group together boxes of the different traces
    )

    page.add(ft.SafeArea(content=fch.PlotlyChart(figure=fig, expand=True)))


if __name__ == "__main__":
    ft.run(main)

Properties​

figureclass-attributeinstance-attribute​

figure: Figure = field(metadata={'skip': True})

Plotly figure to draw.

The value is an instance of plotly.graph_objects.Figure.

original_sizeclass-attributeinstance-attribute​

original_size: bool = False

Whether to display this chart in original size.

Set to False for it to fit it's configured bounds.
