Switch

A toggle represents a physical switch that allows someone to choose between two mutually exclusive options.

For example, "On/Off", "Show/Hide". Choosing an option should produce an immediate result.

Examples​

Live example

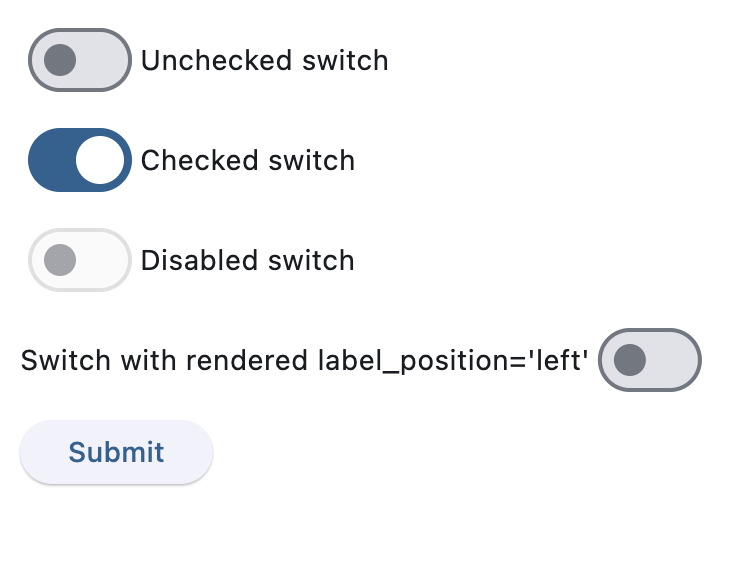

Basic switches​

python/controls/input-and-selections/switch/switch-basic.py
loading...

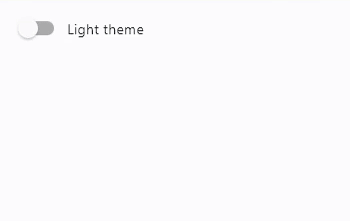

Switch with on_change event​

python/controls/input-and-selections/switch/switch-with-event.py
loading...

Properties​

active_color​

The color to use when this switch is on.

active_track_color​

The color to use on the track when this switch is on.

If track_color returns a non-null color in the SELECTED state, it will be used instead of this color.

adaptive​

If the value is True, an adaptive Switch is created based on whether the target platform is iOS/macOS.

On iOS and macOS, a CupertinoSwitch is created, which has matching functionality and presentation as Switch, and the graphics as expected on iOS. On other platforms, a Material Switch is created.

Defaults to False. See the example of usage here.

autofocus​

True if the control will be selected as the initial focus. If there is more than one control on a page with autofocus set, then the first one added to the page will get focus.

focus_color​

The color to use for the focus highlight for keyboard interactions.

hover_color​

The color to be used when it is being hovered over by the mouse pointer.

inactive_thumb_color​

The color to use on the thumb when this switch is off.

Defaults to colors defined in the material design specification.

If thumb_color returns a non-null color in the DEFAULT state, it will be used instead of this color.

inactive_thumb_image​

An image to use on the thumb of this switch when the switch is off. Can be a local file path or URL.

inactive_track_color​

The color to use on the track when this switch is off.

Defaults to colors defined in the material design specification.

If track_color returns a non-null color in the DEFAULT state, it will be used instead of this color.

label​

The clickable label to display on the right of the Switch.

label_style​

The label's style.

Value is of type TextStyle.

label_position​

Value is of type LabelPosition and defaults to LabelPosition.RIGHT.

mouse_cursor​

The cursor to be displayed when a mouse pointer enters or is hovering over this control. The value is MouseCursor enum.

overlay_color​

The color for the switch's Material in various ControlState states. The following ControlState values are supported: PRESSED, SELECTED, HOVERED, FOCUSED and DEFAULT.

splash_radius​

The radius of the splash effect when the switch is pressed.

thumb_color​

The color of this switch's thumb in various ControlState states. The following ControlState values are supported: SELECTED, HOVERED, DISABLED, FOCUSED and DEFAULT (fallback).

thumb_icon​

The icon of this Switch's thumb in various ControlState states. The following ControlState values are supported: SELECTED, HOVERED, DISABLED, FOCUSED and DEFAULT (fallback).

track_color​

The color of this switch's track in various ControlState states. The following ControlState values are supported: SELECTED, HOVERED, DISABLED, FOCUSED and DEFAULT (fallback).

track_outline_color​

The outline color of this switch's track in various ControlState states. The following ControlState values are supported: SELECTED, HOVERED, DISABLED, FOCUSED and DEFAULT (fallback).

track_outline_width​

The outline width of this switch's track in all or specific ControlState states. The following states are supported: SELECTED, HOVERED, DISABLED, FOCUSED and DEFAULT (fallback).

value​

Current value of the Switch.

Events​

on_blur​

Fires when the control has lost focus.

on_change​

Fires when the state of the Switch is changed.

on_focus​

Fires when the control has received focus.

Event handler argument is of type OnFocusEvent.
