SweepGradient

Creates a sweep gradient centered at center that starts at start_angle and ends at end_angle.

More information here.

Inherits: Gradient

Properties

  • center - The center of the gradient, as an offset into the (-1.0, -1.0) x (1.0, 1.0) square describing the gradient which will be mapped onto the paint box.
  • end_angle - The angle in radians at which stop 1.0 of the gradient is placed.
  • start_angle - The angle in radians at which stop 0.0 of the gradient is placed.

Properties​

centerclass-attributeinstance-attribute​

center: Alignment = field(default_factory=(lambda: Alignment.CENTER))

The center of the gradient, as an offset into the (-1.0, -1.0) x (1.0, 1.0) square describing the gradient which will be mapped onto the paint box.

For example, an flet.Alignment.CENTER will place the sweep gradient in the center of the box.

end_angleclass-attributeinstance-attribute​

end_angle: Number = math.pi * 2

The angle in radians at which stop 1.0 of the gradient is placed.

start_angleclass-attributeinstance-attribute​

start_angle: Number = 0.0

The angle in radians at which stop 0.0 of the gradient is placed.

Examples​

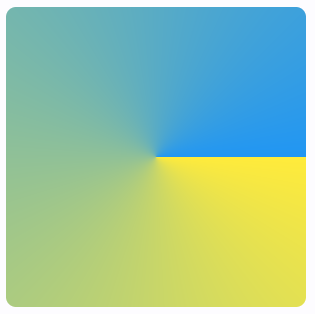

Container with sweep gradient​

import math

import flet as ft


def main(page: ft.Page):
    page.add(
        ft.SafeArea(
            content=ft.Column(
                controls=[
                    ft.Container(
                        alignment=ft.Alignment.CENTER,
                        width=150,
                        height=150,
                        border_radius=ft.BorderRadius.all(5),
                        gradient=ft.SweepGradient(
                            center=ft.Alignment.CENTER,
                            start_angle=0.0,
                            end_angle=math.pi * 2,
                            stops=[0.0, 0.25, 0.5, 0.75, 1.0],
                            colors=[
                                "0xFF4285F4",
                                "0xFF34A853",
                                "0xFFFBBC05",
                                "0xFFEA4335",
                                "0xFF4285F4",
                            ],
                        ),
                    )
                ],
            ),
        )
    )


if __name__ == "__main__":
    ft.run(main)
container
