Alignment

Defines an alignment relative to the center.

Alignment
Alignment explained

Properties

  • BOTTOM_CENTER - Represents the bottom center and is equivalent to Alignment(0.0, 1.0).
  • BOTTOM_LEFT - Represents the bottom left corner and is equivalent to Alignment(-1.0, 1.0).
  • BOTTOM_RIGHT - Represents the bottom right corner and is equivalent to Alignment(1.0, 1.0).
  • CENTER - Represents the center and is equivalent to Alignment(0.0, 0.0).
  • CENTER_LEFT - Represents the center left and is equivalent to Alignment(-1.0, 0.0).
  • CENTER_RIGHT - Represents the center right and is equivalent to Alignment(1.0, 0.0).
  • TOP_CENTER - Represents the top center and is equivalent to Alignment(0.0, -1.0).
  • TOP_LEFT - Represents the top left corner and is equivalent to Alignment(-1.0, -1.0).
  • TOP_RIGHT - Represents the top right corner and is equivalent to Alignment(1.0, -1.0).
  • x - Represents the horizontal distance from the center.
  • y - Represents the vertical distance from the center.

Methods

  • copy - Returns a copy of this object with the specified properties overridden.

Properties​

BOTTOM_CENTERclass-attribute​

BOTTOM_CENTER: AlignmentProperty

Represents the bottom center and is equivalent to Alignment(0.0, 1.0).

BOTTOM_LEFTclass-attribute​

BOTTOM_LEFT: AlignmentProperty

Represents the bottom left corner and is equivalent to Alignment(-1.0, 1.0).

BOTTOM_RIGHTclass-attribute​

BOTTOM_RIGHT: AlignmentProperty

Represents the bottom right corner and is equivalent to Alignment(1.0, 1.0).

CENTERclass-attribute​

CENTER: AlignmentProperty

Represents the center and is equivalent to Alignment(0.0, 0.0).

CENTER_LEFTclass-attribute​

CENTER_LEFT: AlignmentProperty

Represents the center left and is equivalent to Alignment(-1.0, 0.0).

CENTER_RIGHTclass-attribute​

CENTER_RIGHT: AlignmentProperty

Represents the center right and is equivalent to Alignment(1.0, 0.0).

TOP_CENTERclass-attribute​

TOP_CENTER: AlignmentProperty

Represents the top center and is equivalent to Alignment(0.0, -1.0).

TOP_LEFTclass-attribute​

TOP_LEFT: AlignmentProperty

Represents the top left corner and is equivalent to Alignment(-1.0, -1.0).

TOP_RIGHTclass-attribute​

TOP_RIGHT: AlignmentProperty

Represents the top right corner and is equivalent to Alignment(1.0, -1.0).

xinstance-attribute​

x: Number

Represents the horizontal distance from the center.

It's value ranges between -1.0 and 1.0 inclusive.

yinstance-attribute​

y: Number

Represents the vertical distance from the center.

It's value ranges between -1.0 and 1.0 inclusive.

Methods​

copy​

copy(x: Optional[Number] = None, y: Optional[Number] = None)

Returns a copy of this object with the specified properties overridden.

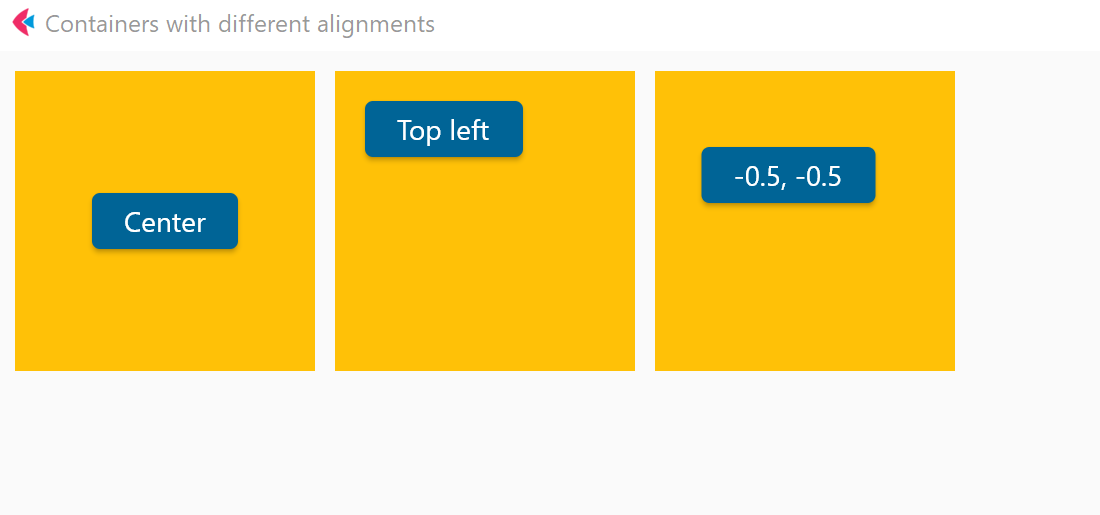

Examples​

Example 1​

import flet as ft


def main(page: ft.Page):
    page.title = "Containers with different alignments"

    page.add(
        ft.SafeArea(
            content=ft.Column(
                controls=[
                    ft.Row(
                        controls=[
                            ft.Container(
                                bgcolor=ft.Colors.AMBER,
                                padding=15,
                                alignment=ft.Alignment.CENTER,
                                width=150,
                                height=150,
                                content=ft.Button("Center"),
                            ),
                            ft.Container(
                                bgcolor=ft.Colors.AMBER,
                                padding=15,
                                alignment=ft.Alignment.TOP_LEFT,
                                width=150,
                                height=150,
                                content=ft.Button("Top left"),
                            ),
                            ft.Container(
                                bgcolor=ft.Colors.AMBER,
                                padding=15,
                                alignment=ft.Alignment(-0.5, -0.5),
                                width=150,
                                height=150,
                                content=ft.Button("-0.5, -0.5"),
                            ),
                        ],
                        wrap=True,
                    )
                ]
            )
        )
    )


if __name__ == "__main__":
    ft.run(main)
