Beautiful gradients, button styles and TextField rounded corners in a new Flet release

· 4 min read
Feodor Fitsner

We've just released Flet 0.1.46 adding new exciting features:

  • Gradient backgrounds in Container
  • Extensive styling for buttons, TextField and Dropdown controls
  • ...and more

Gradient backgrounds

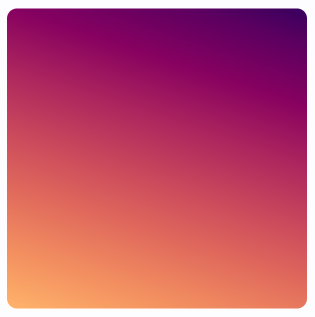

Linear gradient

import math
import flet
from flet import Alignment, Container, LinearGradient, Page, alignment

def main(page: Page):

page.add(
Container(
alignment=alignment.center,
gradient=LinearGradient(
begin=alignment.top_left,
end=Alignment(0.8, 1),
colors=[
"0xff1f005c",
"0xff5b0060",
"0xff870160",
"0xffac255e",
"0xffca485c",
"0xffe16b5c",
"0xfff39060",
"0xffffb56b",
],
tile_mode="mirror",
rotation=math.pi / 3,
),
width=150,
height=150,
border_radius=5,
)
)

flet.app(target=main)

Check Container.gradient docs for more information about LinearGradient properties.

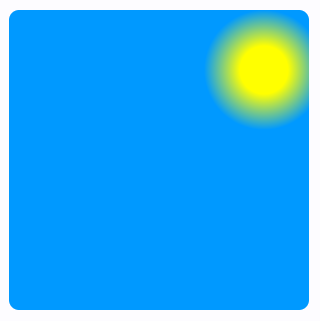

Radial gradient

import flet
from flet import Alignment, Container, Page, RadialGradient, alignment

def main(page: Page):

page.add(
Container(
alignment=alignment.center,
gradient=RadialGradient(
center=Alignment(0.7, -0.6),
radius=0.2,
colors=[
"0xFFFFFF00", # yellow sun
"0xFF0099FF", # blue sky
],
stops=[0.4, 1.0],
),
width=150,
height=150,
border_radius=5,
)
)

flet.app(target=main)

Check Container.gradient docs for more information about RadialGradient properties.

Sweep gradient

import math
import flet
from flet import Container, Page, SweepGradient, alignment

def main(page: Page):

page.add(
Container(
alignment=alignment.center,
gradient=SweepGradient(
center=alignment.center,
start_angle=0.0,
end_angle=math.pi * 2,
colors=[
"0xFF4285F4",
"0xFF34A853",
"0xFFFBBC05",
"0xFFEA4335",
"0xFF4285F4",
],
stops=[0.0, 0.25, 0.5, 0.75, 1.0],
),
width=150,
height=150,
border_radius=5,
)
)

flet.app(target=main)

Check Container.gradient docs for more information about SweepGradient properties.

Buttons styling

This Flet release introduces style property to all button controls which is an instance of ButtonStyle class. ButtonStyle allows controling all visual aspects of a button, such as shape, foreground, background and shadow colors, content padding, border width and radius!

Moreover, each individual style attribute could be configured for a different "Material states" of a button, such as "hovered", "focused", "disabled" and others. For example, you can configure a different shape, background color for a hovered state and configure fallback values for all other states.

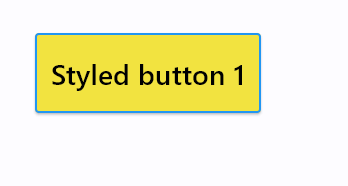

Check this "extreme" styling example:

import flet
from flet import ButtonStyle, ElevatedButton, Page, colors
from flet.border import BorderSide
from flet.buttons import RoundedRectangleBorder

def main(page: Page):

page.add(
ElevatedButton(
"Styled button 1",
style=ButtonStyle(
color={
"hovered": colors.WHITE,
"focused": colors.BLUE,
"": colors.BLACK,
},
bgcolor={"focused": colors.PINK_200, "": colors.YELLOW},
padding={"hovered": 20},
overlay_color=colors.TRANSPARENT,
elevation={"pressed": 0, "": 1},
animation_duration=500,
side={
"": BorderSide(1, colors.BLUE),
"hovered": BorderSide(2, colors.BLUE),
},
shape={
"hovered": RoundedRectangleBorder(radius=20),
"": RoundedRectangleBorder(radius=2),
},
),
)
)

flet.app(target=main)

Empty string ("") state is a fallback style.

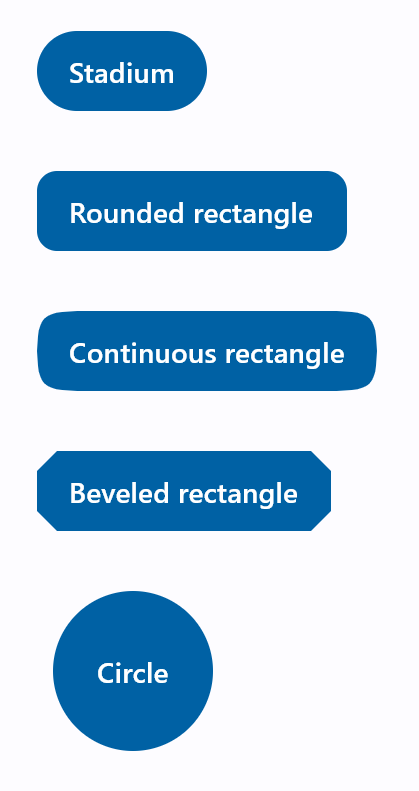

Button shape could also be changed with ButtonStyle.shape property:

import flet
from flet import ButtonStyle, FilledButton, Page
from flet.buttons import (
BeveledRectangleBorder,
CircleBorder,
CountinuosRectangleBorder,
RoundedRectangleBorder,
StadiumBorder,
)

def main(page: Page):
page.padding = 30
page.spacing = 30
page.add(
FilledButton(
"Stadium",
style=ButtonStyle(
shape=StadiumBorder(),
),
),
FilledButton(
"Rounded rectangle",
style=ButtonStyle(
shape=RoundedRectangleBorder(radius=10),
),
),
FilledButton(
"Continuous rectangle",
style=ButtonStyle(
shape=CountinuosRectangleBorder(radius=30),
),
),
FilledButton(
"Beveled rectangle",
style=ButtonStyle(
shape=BeveledRectangleBorder(radius=10),
),
),
FilledButton(
"Circle",
style=ButtonStyle(shape=CircleBorder(), padding=30),
),
)

flet.app(target=main)

Check ElevatedButton.style property docs for a complete description of ButtonStyle class and its properties.

TextField and Dropdown styling

It is now possible to configure text size, border style and corners radius for normal and focused states of TextField and Dropdown controls. TextField also allows configuring colors for a cursor and selection.

Additionally, the maximum length of entered into TextField can now be limited with max_length property.

We also introduced capitalization property for automatic capitalization of characters as you type them into TextField. You can choose from 4 capitalization strategies: none (default), characters, words and sentences.

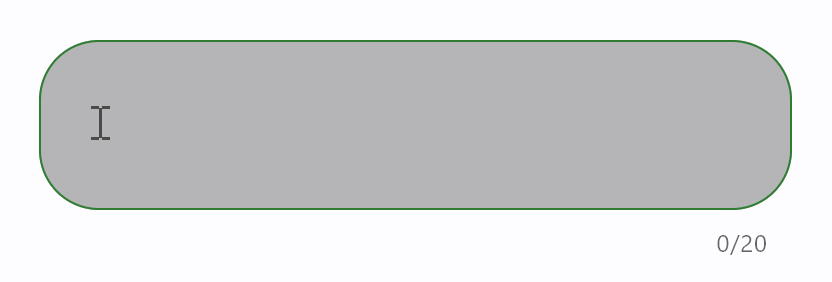

An example of styled TextField with max_length and capitalization:

import flet
from flet import Page, TextField, colors

def main(page: Page):
page.padding = 50
page.add(
TextField(
text_size=30,
cursor_color=colors.RED,
selection_color=colors.YELLOW,
color=colors.PINK,
bgcolor=colors.BLACK26,
filled=True,
focused_color=colors.GREEN,
focused_bgcolor=colors.CYAN_200,
border_radius=30,
border_color=colors.GREEN_800,
focused_border_color=colors.GREEN_ACCENT_400,
max_length=20,
capitalization="characters",
)
)

flet.app(target=main)

An example of styled Dropdown control:

import flet
from flet import Dropdown, Page, colors, dropdown

def main(page: Page):
page.padding = 50
page.add(
Dropdown(
options=[
dropdown.Option("a", "Item A"),
dropdown.Option("b", "Item B"),
dropdown.Option("c", "Item C"),
],
border_radius=30,
filled=True,
border_color=colors.TRANSPARENT,
bgcolor=colors.BLACK12,
focused_bgcolor=colors.BLUE_100,
)
)

flet.app(target=main)

Other changes

IconButton got selected state which plays nice with a new style.

This is an example of a toggle icon button:

import flet
from flet import ButtonStyle, IconButton, Page, colors, icons

def main(page: Page):

def toggle_icon_button(e):
e.control.selected = not e.control.selected
e.control.update()

page.add(
IconButton(
icon=icons.BATTERY_1_BAR,
selected_icon=icons.BATTERY_FULL,
on_click=toggle_icon_button,
selected=False,
style=ButtonStyle(color={"selected": colors.GREEN, "": colors.RED}),
)
)

flet.app(target=main)

Give Flet a try and let us know what you think!
